STRADIVARI LINE EVOLUTION PREAMPLIFIER

PREAMPLIFICATORE STRADIVARI LINEA

Project Info

Skills 20 - 50K entro 0,5 dB - 20 - 80K entro 3 dB

Project Description

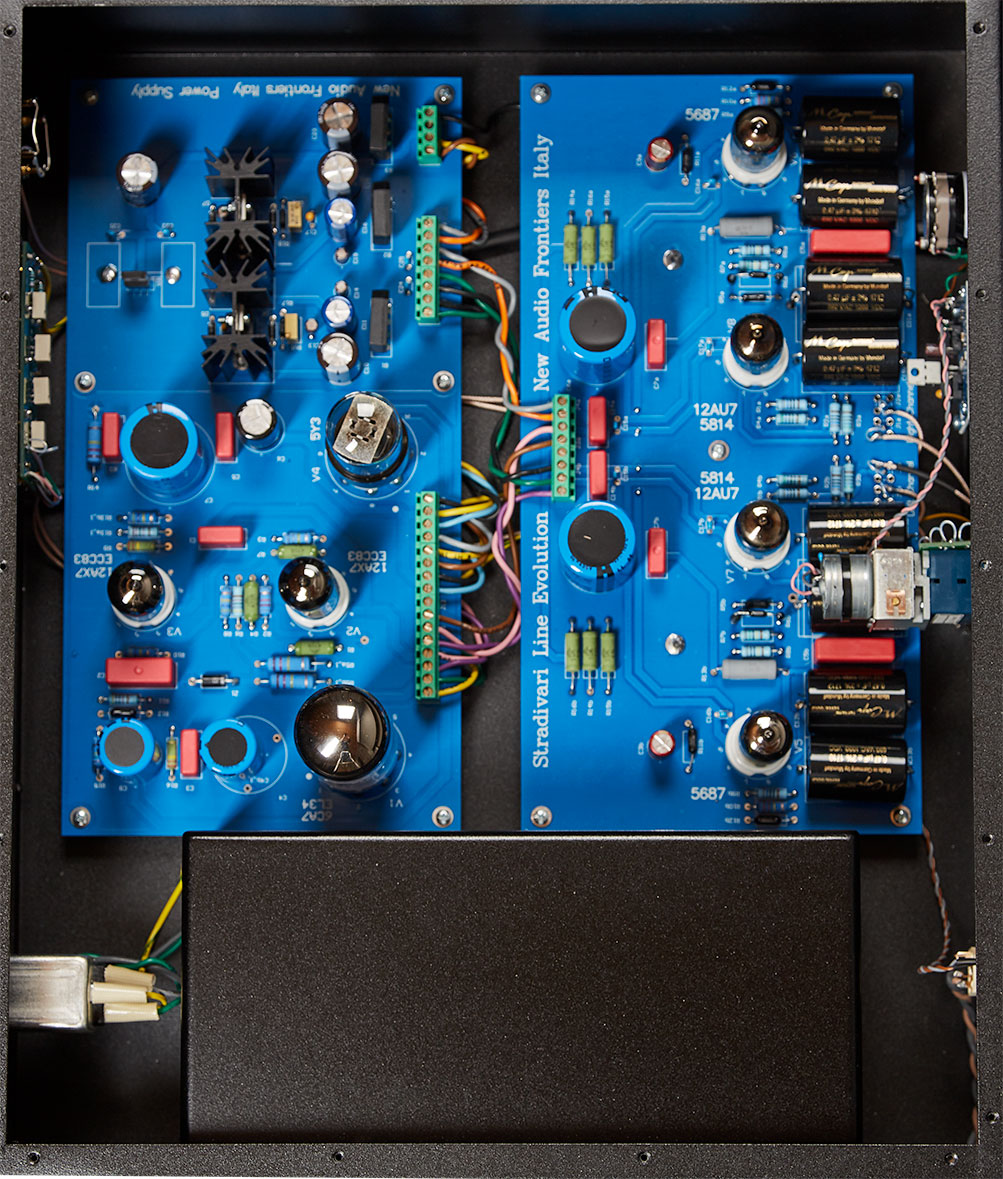

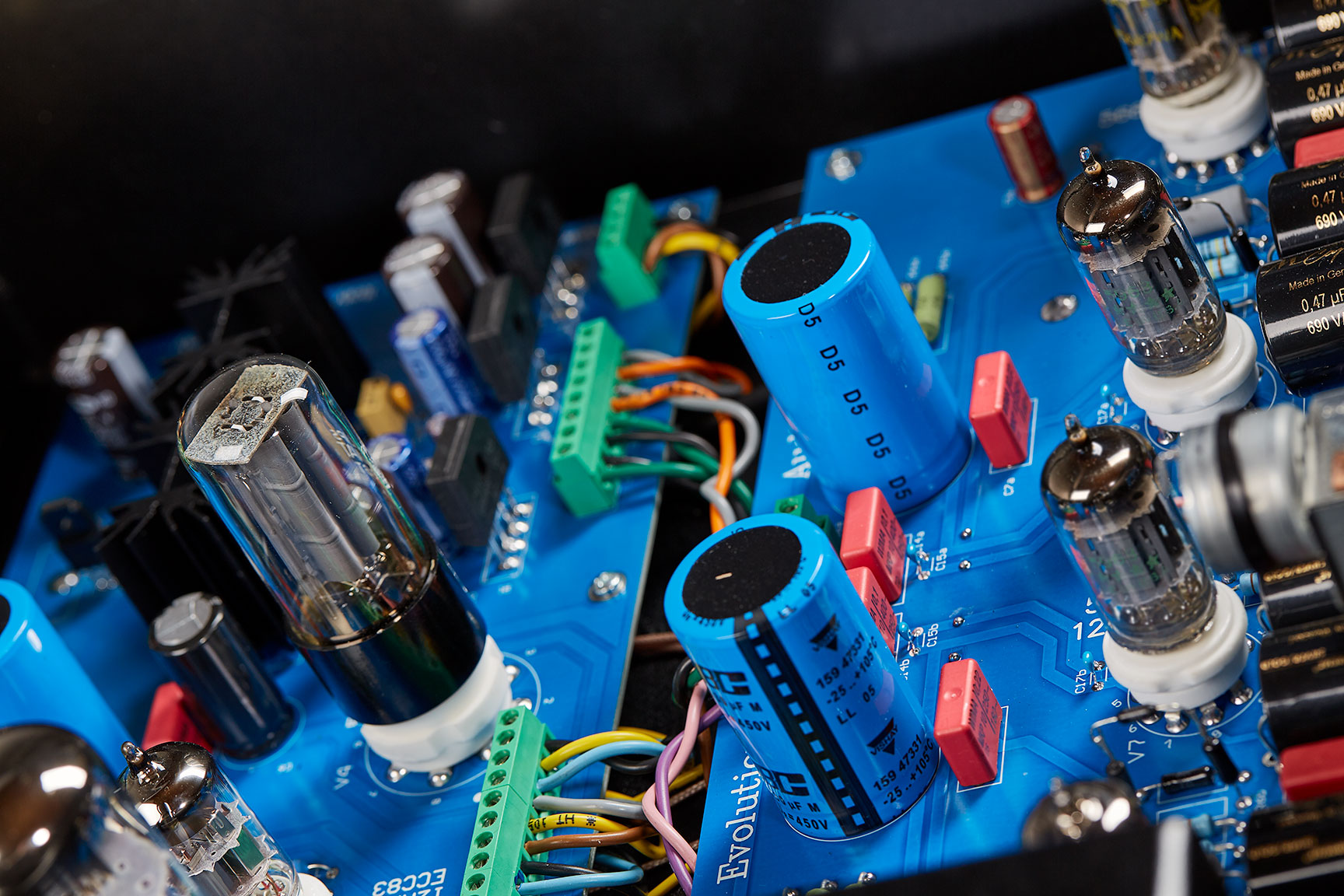

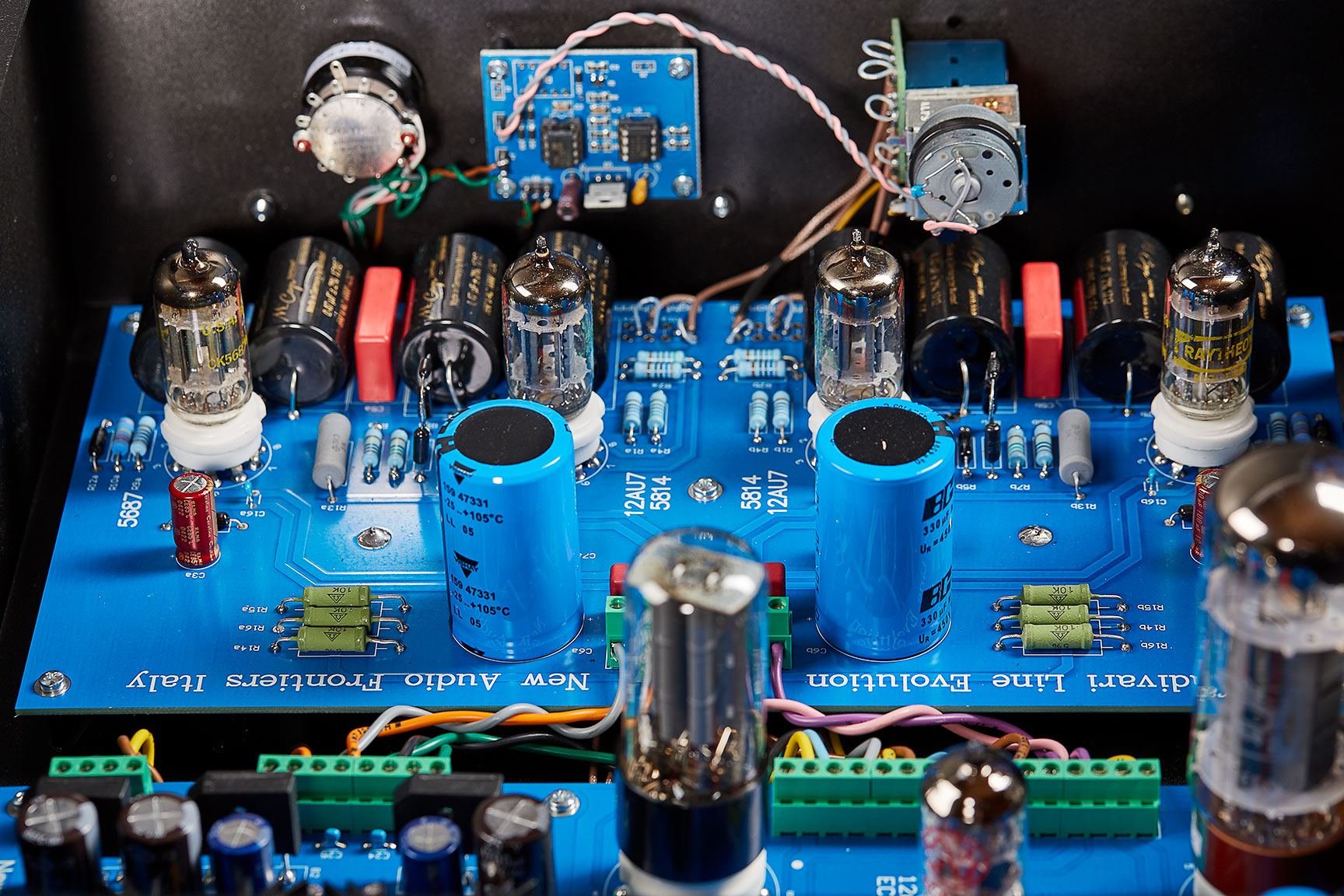

New Audio Frontiers Italy opens with this realization a new product line: the Stradivari Line and the Stradivari Phono.We have added some substantial changes to the new pre-line that has become the Stradivari Line Evolution. The main changes have been made to the power circuit and in this case a new pair of separate transformers: one dedicated to the anodic current and the other one for the filaments of the valves. The current is completely rectified with valves with a 5Y3, while on the line signal all the capacitors have been replaced with the most performing Mundorf. It is a Line Preamplifier that has been designed to meet the demands of the mostexacting audiophiles; the study of original circuitry and the choice of components of the highest quality make it a point of reference between devices of the category. Meticolous care has been placed in the circuit of high voltage power supply that usesa very high gain error correcting stage based on the use of a pair of 12AX7 whichdrives a 6CA7/EL34 as power tube. The design of this circuit has been optimized to elimi- nate any parasitic oscillations and maintain a costant anode voltage and a ripple less than 250 µV.The excellent filtering and the use of circuit voltage regulators provide the DC voltages to the heaters of the left and right channels of the preamplifier.The heart of the apparatus is, however, the amplification stage itself, which uses (foreach channel) a first tube 5814 / 5963 / 12AU7 / ECC82 as amplifier followed by a 5687 as output buffer. The originality of the solutions adopted mean that you are before a device that combines the qualities of a sound smooth and enfolding, with the quickness of a very wide dynamic that gives an exceptional sound detail. The fidelity of reproduction is a further feature of the apparatus that helps to enhance the quality. It was reached a percentage of distorsion at 1000 Hz of only 0.09% with a bandwidth which remains constant (less than 0.5 dB) from 20 to 50000 Hz and from 20 to 80000 Hz within 3 dB.All this maintaining a background noise absolutely not perceptible thanks to a S/N ratio of 92 dB . These characteristics are the result of a long study design and were detected in the measurement carried out on several specimens using. laboratory instrumentation HP and Tektronix.

TECHNICAL CHARACTERISTICS

  • Model …………………………………………….. STRADIVARI LINE EVOLUTION
  • Type ………………………………………………. Tubes

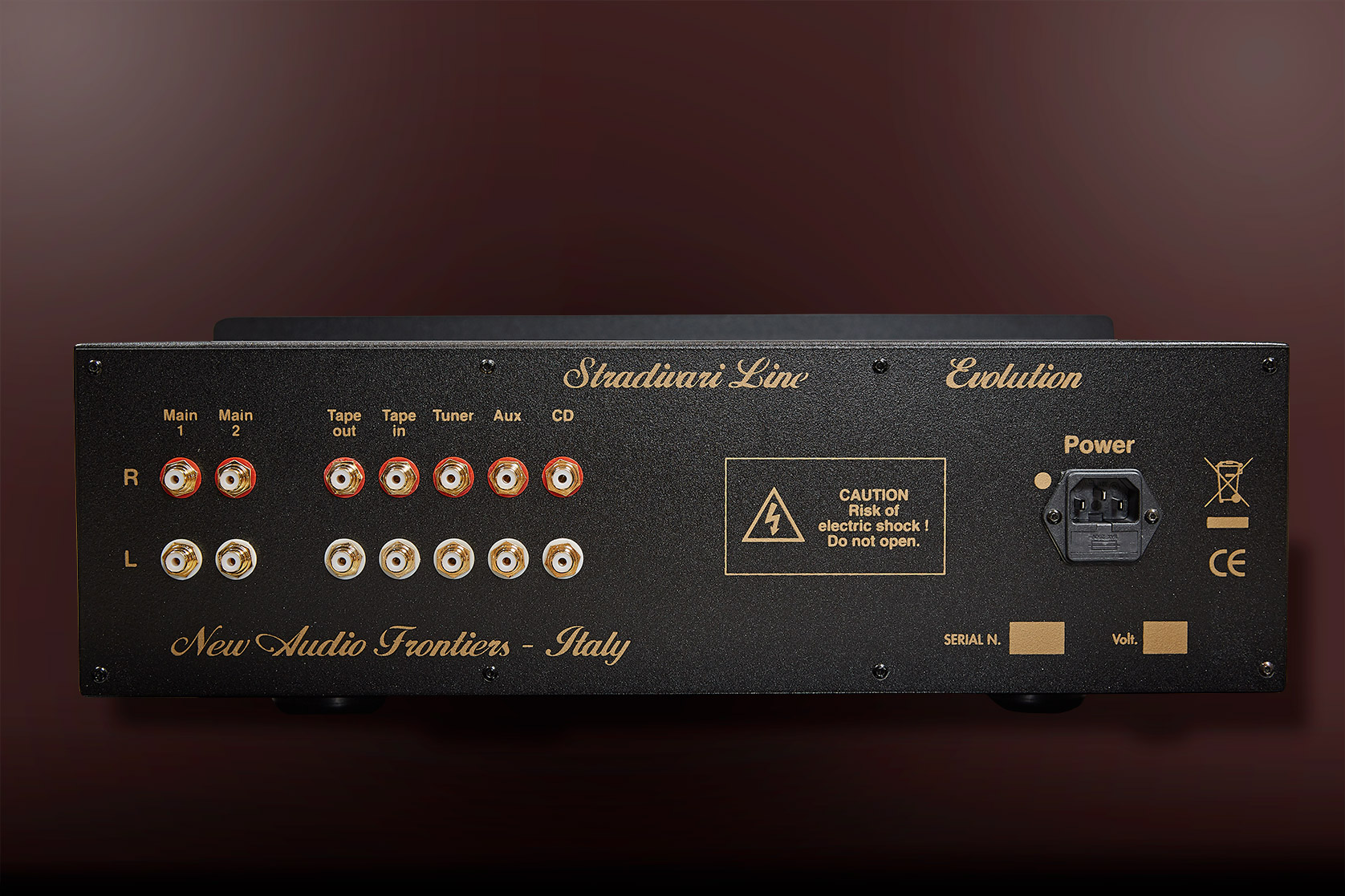

  • Inputs …………………………………………….. 4 RCA Line
  • Outputs…………………………………………… 2 RCA
  • Gain ………………………………………………. 15 dB
  • Frequency response …………………………. 20 – 50K within 5 dB
  •                                                                   20 – 80K within 3 dB
  • Input impedance ……………………………… 100 KΩ
  • Signal / noise ratio …………………………… 92 dB
  • Dimensions …………………………………….. 48 x 16 x 39 cm. (W x H x D)
  • Net weight………………………………………. 25 kg.
  • Manufacturer ………………………………….. New Audio Frontiers – Italy

New Audio Frontiers inaugura con questa realizzazione una nuova linea di prodotti: lo Stradivari Line e lo Stradivari Phono.Abbiamo aggiunto alcune modifiche sostanziali nel nuovo pre linea che è diventato lo Stradivari Line Evolution. Le modifiche principali sono state apportate al circuito di alimentazione e nella fattispecie una nuova coppia di trasformatori separati: uno dedica- to alla corrente anodica e l’altro per i filamenti delle valvole. La corrente viene raddriz- zata interamente a valvole con una 5Y3 mentre sul segnale linea sono stati sostituiti tutti i condensatori con dei più performanti Mundorf. Si tratta di un Preamplificatore Linea che è stato concepito per rispondere alle richieste degli audiofili più esigenti; lo studio di una originale circuitazione e la scelta dei componenti di assoluta qualità ne fanno un punto di riferimento tra gli apparati della categoria.Una cura maniacale è stata posta nel circuito di alimentazione ad alta tensione che utilizza un circuito a correzione di errore ad altissimo guadagno che si basa sull’impiego di una coppia di 12AX7 che pilotano una 6CA7/EL34 come valvola di potenza. Il disegno di questo circuito è stato ottimizzato per eliminare eventuali oscillazioni parassite e mantenere una tensione anodica costante ed un ripple minore di 250 µV.L’ottimo filtraggio e l’impiego di circuiti stabilizzatori di tensione forniscono le tensioni continue per i filamenti dei canali destro e sinistro del Preamplificatore.Il cuore dell’apparato è però lo stadio di amplificazione vero e proprio che utilizza (per ogni canale) una prima valvola 5814 / 5963 / 12AU7 / ECC82 come amplificatrice seguita da una 5687 come buffer di uscita. L’originalità delle soluzioni adottate fanno si che ci si trovi dinnanzi ad un apparato che unisce le qualità di un suono morbido e avvolgente con la prontezza di una amplissima dinamica che permette un eccezionale dettaglio sonoro. La fedeltà della riproduzione è una ulteriore caratteristica dell’apparato che contribuisce ad esaltarne le qua- lità. È stata raggiunta una percentuale di distorsione a 1000 Hz di solo lo 0,09% con una banda passante che si mantiene costante (minore di 0,5dB) da 20 a 50000 Hz e da 20 a 80000 Hz entro 3dB. Tutto questo mantenendo un rumore di fondo assolutamente non percepibile grazie ad un rapporto S/N di 92 dB.Queste caratteristiche sono il risultato di un lungo studio di progettazione e sono state poi riscontrate nelle misure effettuate su diversi esemplari utilizzando strumentazione di labora- torio HP e Tektronix.
