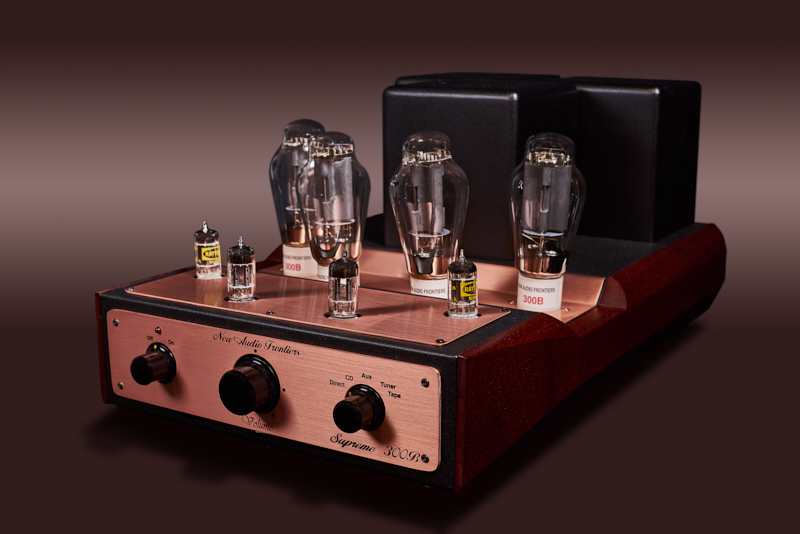

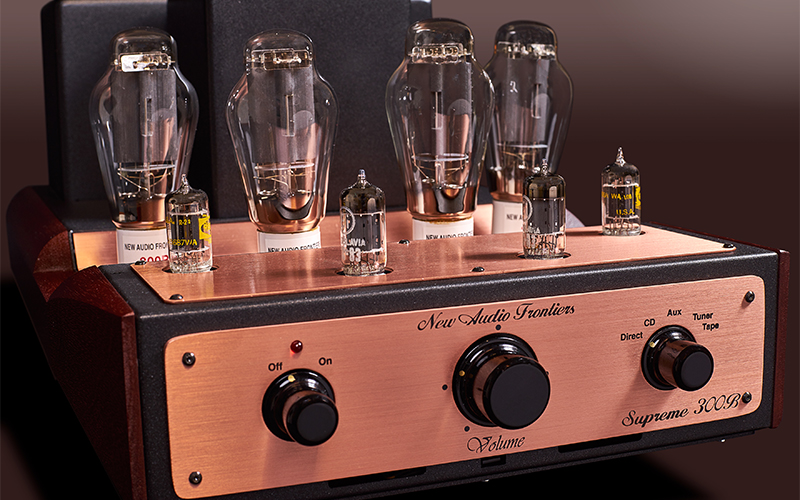

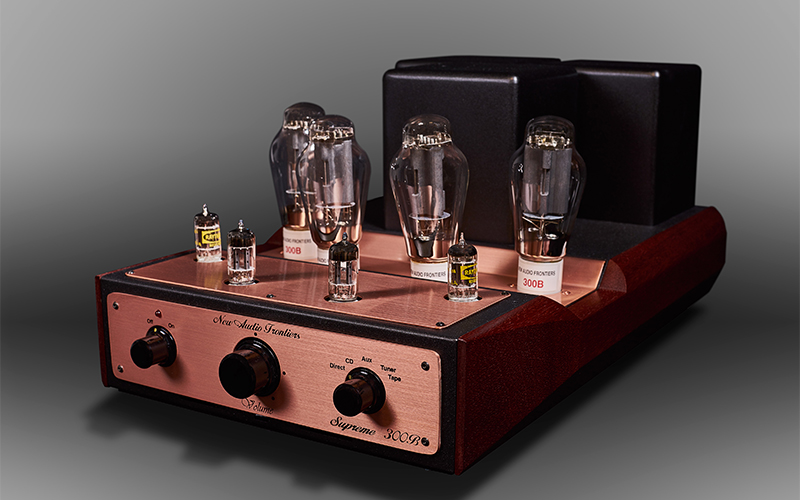

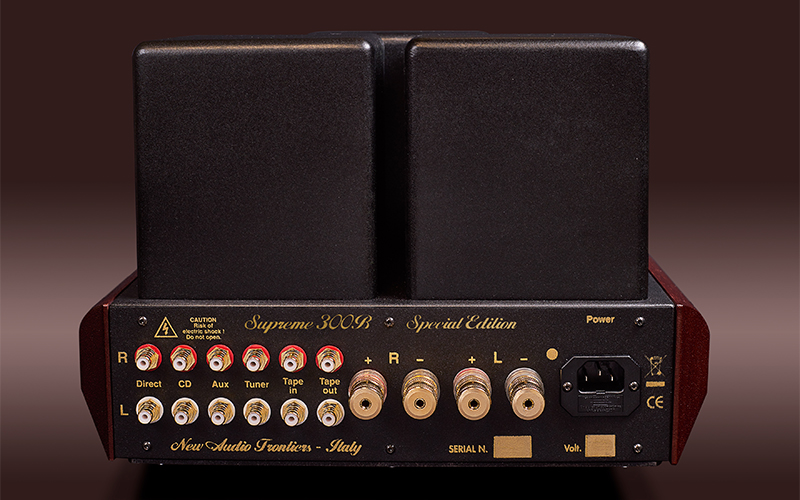

INTEGRATED & STEREO AMPLIFIER SUPREME 300B SPECIAL EDITION

AMPLIFICATORE INTEGRATO E STEREO SUPREME 300B SPECIAL EDITION

Project Description

The amplifier Supreme 300B Special Edition can be used both as integrated amplifier or as stereo amplifier. It starts from the most advanced solutions reached during the design of Performance 2A3 stereo amplifier taking them to their highest expression thanks to the choice of the best electronic components available on market.Each component in each amplification stage has been chosen with the greatest accuracy and this lead us to use Holco non inductive resistors on signal path and, when this wasn’t possible due to the high dissipated power, the choice had been Vishay. In each case the components we selected are built in respect of MIL specifications and guarantee a really strict tolerance on nominal values.We also paid great attention in the design and production of what we consider the most important part of a tube power amplifier: the output transformer. This amplifier uses a transformer handwound using a proprietary winding scheme that guarantee at the same time maximum symmetry in winding and a minimum loss ratio. To improve further the performances on the high end of the spectrum and to minimize skin effect we use a silver plated copper Litz wire that assures a leading sonic result. They are also built with core in amorph and the winding is double wire for avoid the parassistic oscillation. Being characterized by fully symmetrical dual mono circuitry and individually regulated power supply thanks to the particular regulator module that has been used also for Performance 2A3 amplifier, this amplifier assures really low distortion level until clipping. The driver stage is composed by differential amplifiers biased with current source to improve intrinsic linearity.The output stage is composed by two 300B for each channel in Push-Pull. In this configuration we achieved in obtaining 21W. The output stage is fixed biased in order to improve overload recovery performances and this reflects in an improved reproduction of dynamic peaks.The sonic characteristics that have made it famous troughout the word valves 300B are further ehnanced by the particular circuitry of the amp that becomes its strenght in extreme natural mid high range. Not least the bass is present, without any coloring, deep and controlled.

TECHNICAL CHARACTERISTICS

  • Model …………………………………………….. SUPREME 300B SPECIAL EDITION
  • Type ………………………………………………. Integrated & Stereo amplifier
  • Continuous power ……………………………. 2 x 21 Watt on 8 Ohm / THD 5%
  • Sensitivity / Input impedance ……………  900 mv / 100 KΩ
  • Power consumption …………………………. 300 Watt max
  • Frequency reply ………………………………. 20 ÷ 65.000 KHz
  • Signal to noise ratio …………………………. 80 dB
  • Dimensions …………………………………….. 35 x 24 x 56 cm. (W x H x D)
  • Net weight………………………………………. 45 kg.
  • Manufacturer ………………………………….. New Audio Frontiers – Italy

L’amplificatore Supreme 300B Special Edition può essere utilizzato sia come integrato che come finale stereo.Esso riprende le più avanzate soluzioni raggiunte nella progettazione dell’amplificatore Performace 2A3 portandole alla più alta espressione grazie all’utilizzo di componentistica di altissimo livello.
In ogni stadio di amplificazione la scelta dei componenti è stata estremamente accurata e ci ha portato ad utilizzare sul percorso del segnale resistenze non induttive Holco e, dove questo non era possibile viste le potenze dissipate in gioco, la scelta è caduta su Vishay. In entrambi i casi si tratta di componenti rispondenti a norme militari e a tolleranze sui valori nominali strettissime.

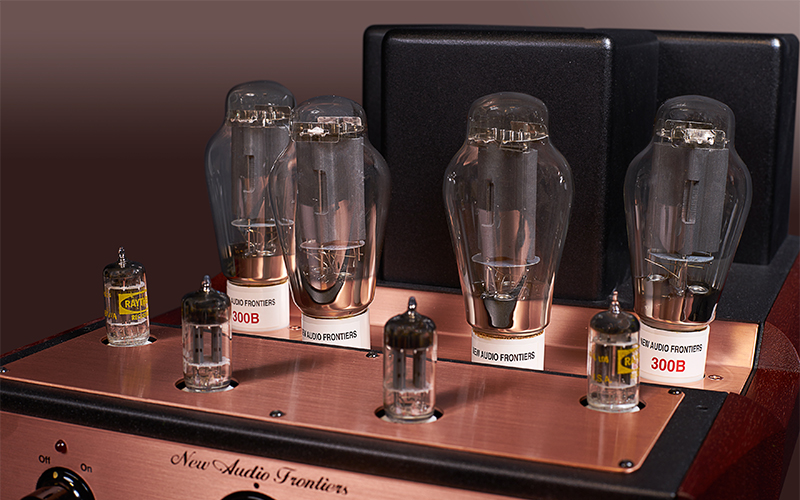

Moltissima attenzione è poi stata riposta nella realizzazione di quello che consideriamo essere la parte più importante di un amplificatore valvolare: il trasformatore di uscita. In questo caso esso è avvolto a mano utilizzando uno schema di avvolgimento proprietario che garantisce al tempo stesso la massima simmetria degli avvolgimenti e un minimo fattore di perdita. Per incrementare ulteriormente le prestazioni sul- l’estremo acuto e minimizzare l’importanza dell’effetto pelle viene utilizzato filo Litz in rame argentato che garantisce un risultato sonoro da primato. Inoltre sono costruiti con il nucleo in amorfo e l’avvolgimento è fatto a doppio filo per evitare al massimo le oscillazioni parassite.Essendo caratterizzato da circuitazioni dual mono completamente simmetriche e alimentazioni regolate attraverso l’uso del particolare modulo regolatore già messo a punto per l’amplificatore Performance 2A3, questo prodotto garantisce livelli di distorsione bassissimi fino alle soglie del clipping. Queste performances sono anche raggiunte attraverso l’utilizzo di un driver ad amplificatori differenziali con pozzo di corrente. Lo stadio di uscita è composto da due 300B per canale in configurazione Push-Pull che permette di raggiungere una potenza erogata di 21W. La polarizzazione dei circuiti di uscita è di tipo a bias fisso per garantire un recupero dal sovraccarico migliore e, quindi, migliori prestazioni sui picchi dinamici.Le caratteristiche soniche che hanno reso celebre in tutto il mondo le valvole 300B vengono ulteriormente esaltate dalla particolare circuitazione di questo amplificatore che fa della naturalezza estrema in gamma medio alta il suo punto di forza. Non di meno la gamma bassa rimane presente, priva di colorazioni, profonda e controllata.
