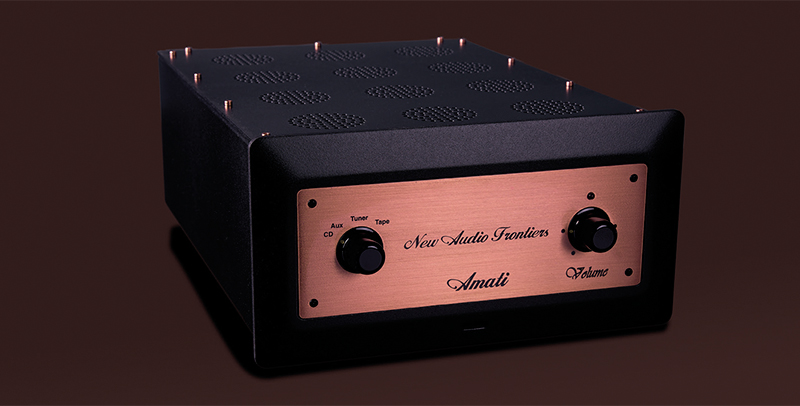

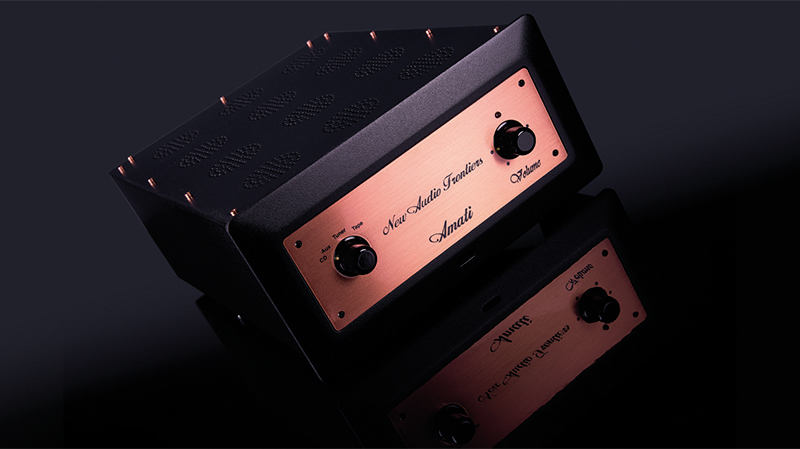

PREAMPLIFIER AMATI LINE

Project Info

Project Description

The new line preamplifier AMATI represents the moment of synthesis between the search for new solutions and the creation of a system of the highest quality. The particular circuit adopted means that the frequency response of the preamplifier allows the correct reproduction from the lowest frequency up to the maximum audible. The scene is filled with a reproduction of low notes well articulated, the upper medium band is distinguished especially for its sophistication and let the music flow without any harshness offering a rare example of sound holography and great musical breath, all this means that this preamplifier is rightly placed among the best in class, in line with the production of the New Audio Frontiers. When the design is accurate and the quality of the materials is the best available on the market, the result is a device that has all the qualities that a discerning audiophile can look for. The care in designing, through the by-pass valve (EL34) and the control valve (ECF82) makes very minimal (inaudible) any ripple induced from the mains. The amplifying valve of each channel is the 6DJ8 (well known for its low noise) that is used with a circuit designed to have the widest bandwidth while minimizing the noise induced by the heaters which are fed in direct current.
TECHNICAL CHARACTERISTICS
• Model: …………………………………….. AMATI LINE
•Type: ……………………………………….. Tubes

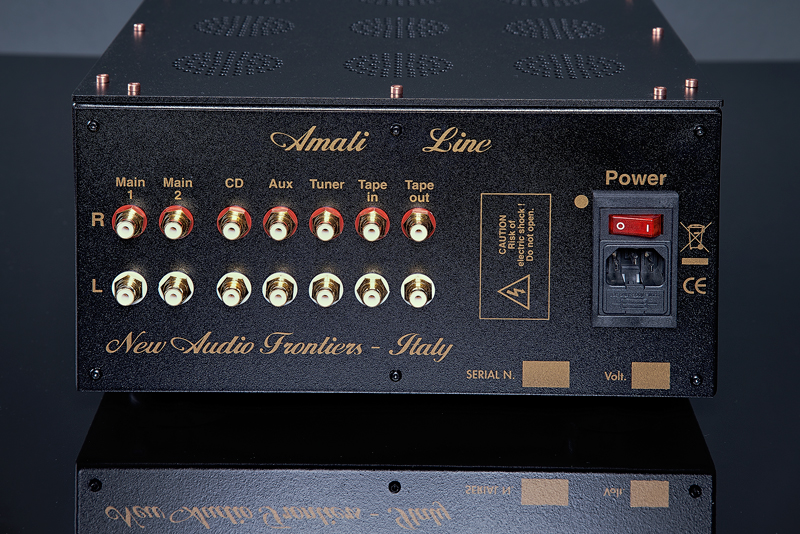

•Inputs: ……………………………………… 4 RCA Line
•Outputs:……………………………………..2 RCA
•Gain: …………………………………………14 dB
•Frequency response: …………………. 20 – 40K within 5 dB
                                    …………………..20 – 60K within 3 dB
Input impedance: ……………………….. 100 KΩ
Signal / noise ratio: …………………….. 90 dB
Dimensions: ………………………………..29,5 x 15 x 40 cm. (W x H x D)
Net weight: ……………………………….. 18 kg.
Manufacturer: ……………………………. New Audio Frontiers – Italy
Il nuovo Preamplificatore Linea AMATI rappresenta il momento di sintesi tra la ricerca di nuove soluzioni e la realizzazione di un apparato di qualità massima. Il particolare circuito adottato fa si che la risposta in frequenza del preamplificatore permetta la corretta riproduzione dalle più basse frequenze sino al massimo udibile. La scena risulta piena con una riproduzione delle note basse ben articolata, la banda medio alta si evidenzia soprattutto per la sua raffinatezza e lascia fluire la musica senza alcuna asprezza offrendo un raro esempio di olografia sonora e di grande respiro musicale, tutto ciò fa si che questo preamplificatore si collochi a buon diritto tra i migliori della categoria, in linea con la produzione della New Audio Frontiers. Quando la progettazione è accurata e la qualità dei materiali impiegati è la migliore disponibile sul mercato, il risultato è un apparecchio che ha tutte le qualità che un audiofilo esigente può cercare. La cura nel progetto dell’alimentazione, attraverso la valvola di by-pass (EL34) e la valvola di controllo (ECF82) rende veramente minimo (non udibile) qualsiasi ripple indotto dalla rete elettrica. La valvola amplificatrice di ciascun canale è la 6DJ8 (ben nota per il suo basso rumore) che viene utilizzata con un circuito disegnato per avere la più ampia banda passante minimizzando nel contempo il rumore indotto dai filamenti che sono alimentati in corrente continua.
