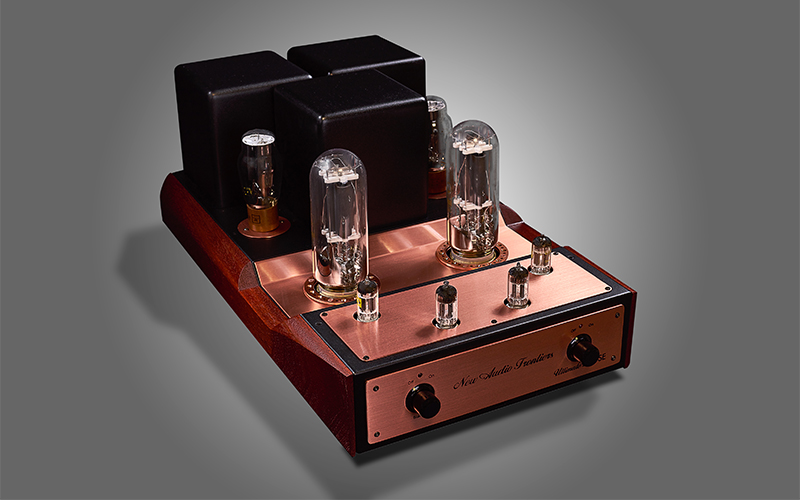

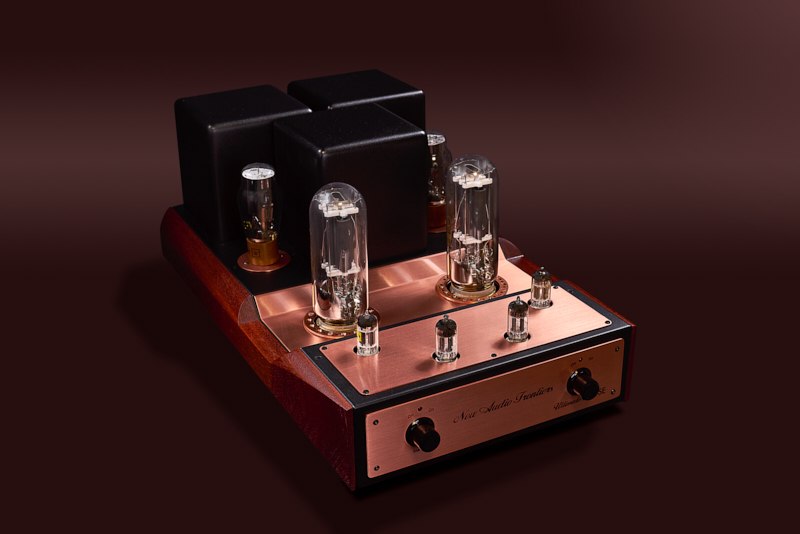

STEREO AMPLIFIER ULTIMATE 211 SE

AMPLIFICATORE STEREO ULTIMATE 211 SE

Project Description

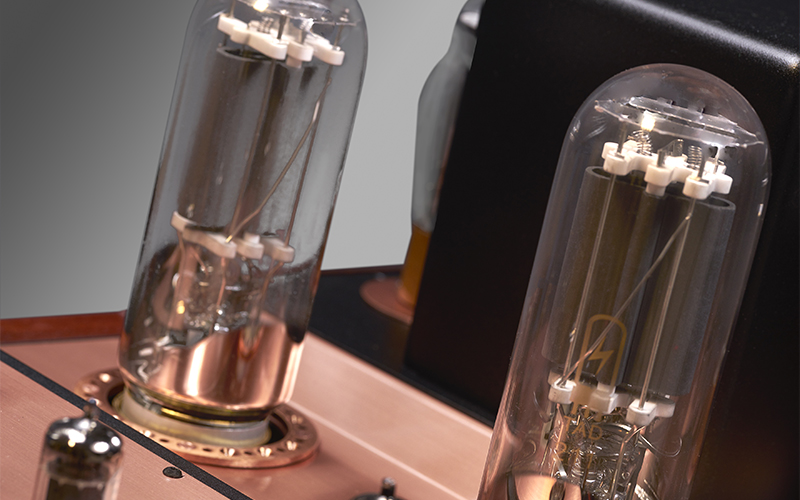

New Audio Frontiers offers to all music lovers who are looking for a valve with a linear sound over the entire audio range with a detailed tonal and dynamic the new ULTIMATE 211 SE. We offer this product for all those who wants to benefit of all the characteristics of refinement, warmness and precision that directly heating triode in single ended configuration can provide. This integrated amplifier running in pure Class A, with its 20 Watts for each channel delivered by an 211 driven by an ultralinear SRPP, can drive without any problem, in a domestic context, most of the loudspeakers on the market with an efficiency of at least 90dB. The output transformers are of the highest level, handwound using silver plated copper litz wire. They are built with core in M0 (the M0 is the thick of core in 0,1mm) and the winding is double wire for avoid the parassistic oscillation and many loss into the core. Output Tube bias is automatic and doesn’t need any regulation, with cathodic resistors bypassed by high quality capacitor. The rectifier for anodic power supply is made up by two 5R4GY directly heated rectifier tube. All these things give the amplifier an incomparable sonic quality that satisfies the most demanding audiophiles. The amplifier is made with strictly selected components in order to achieve the best sonic fidelity and the greatest reliability. This integrated amplifier completely disappear on listening and offers a wide threedimensional soundstage which is a rare example of musical breath and holographic sound.

TECHNICAL CHARACTERISTICS

  • Model …………………………………………….. ULTIMATE 211 SE
  • Type ………………………………………………. Stereo
  • Continuous power …………………………….2 x 20 Watt su 8 Ohm / THD 5%
  • Sensitivity / Input impedance …………….700 mv / 33 KΩ
  • Power consumption ………………………….350 Watt max.
  • Dimensions …………………………………….. 35 x 24 x 56 cm. (W x H x D)
  • Net weight……………………………………….. 50 kg.
  • Manufacturer ………………………………….. New Audio Frontiers – Italy

New Audio Frontiers propone il nuovo ULTIMATE 211 a tutti gli appassionati che sono alla ricerca di una valvola dal suono lineare su tutta la gamma audio, con una timbrica dettagliata e dinamica. Offriamo questo prodotto per tutti coloro che desiderano usufruire di tutte le caratteristiche di raffinatezza, calore e precisione che i triodi in circuitazione single ended sono in grado di fornire. Questo amplificatore stereo, con i suoi 20 Watt in Classe A pura, erogati da una 211 per canale pilotata da un driver ultralineare in SRPP, riesce a pilotare agevolmente, in ambiente domestico, la maggior parte dei diffusori presenti sul mercato dotati di un’efficienza di almeno 90dB. I trasformatori di uscita sono di altissimo livello, avvolti a mano con filo litz in rame argentato, sono costruiti con il nucleo in M0 (è lo spessore del lamierino di 0,1 mm) e l’avvolgimento è fatto a doppio filo per evitare al massimo le oscillazioni parassite e le perdite nel lamierino. Il bias è automatico e non necessita di regolazioni, con resistenze catodiche bypassate da condensatori di altissima qualità mentre il raddrizzamento nell’alimentatore anodico è effettuato con due tubi rettificatori a riscaldamento diretto 5R4GY. Tutto questo fornisce una qualità sonora incomparabile atta a soddisfare gli audiofili più esigenti. L’amplificatore è stato costruito con componenti altamente selezionati al fine di fornire la massima qualità acustica, unita ad un’altissima affidabilità. Questo amplificatore stereo tende a scomparire all’ascolto lasciando spazio al suono e offrendo un raro esempio di grande respiro musicale, unito ad una spiccata capacità di ricostruzione della tridimensionalità del sound stage.
